Key Features
- Waterproof XL-5™ ESC and Titan® 550 Motor

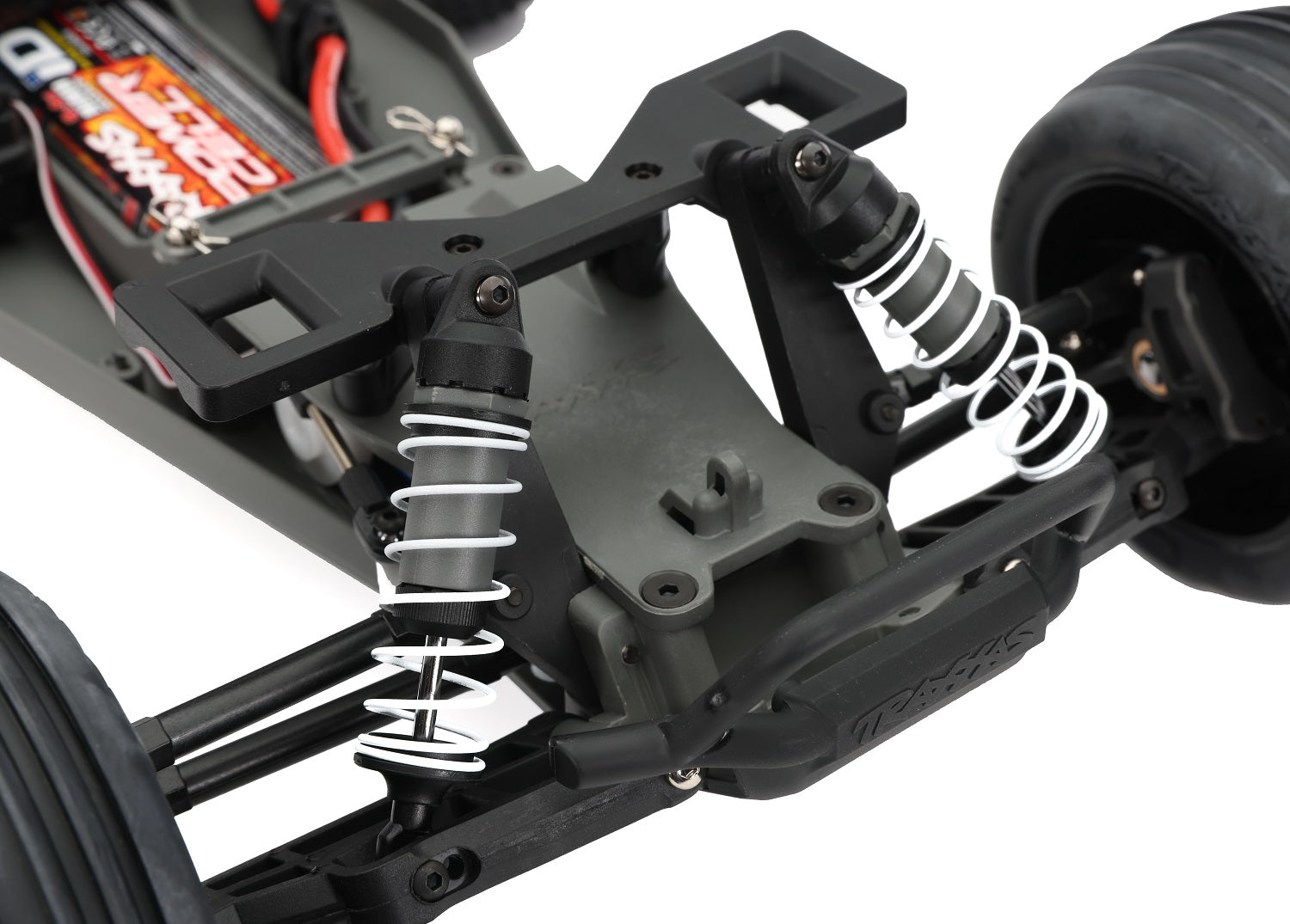

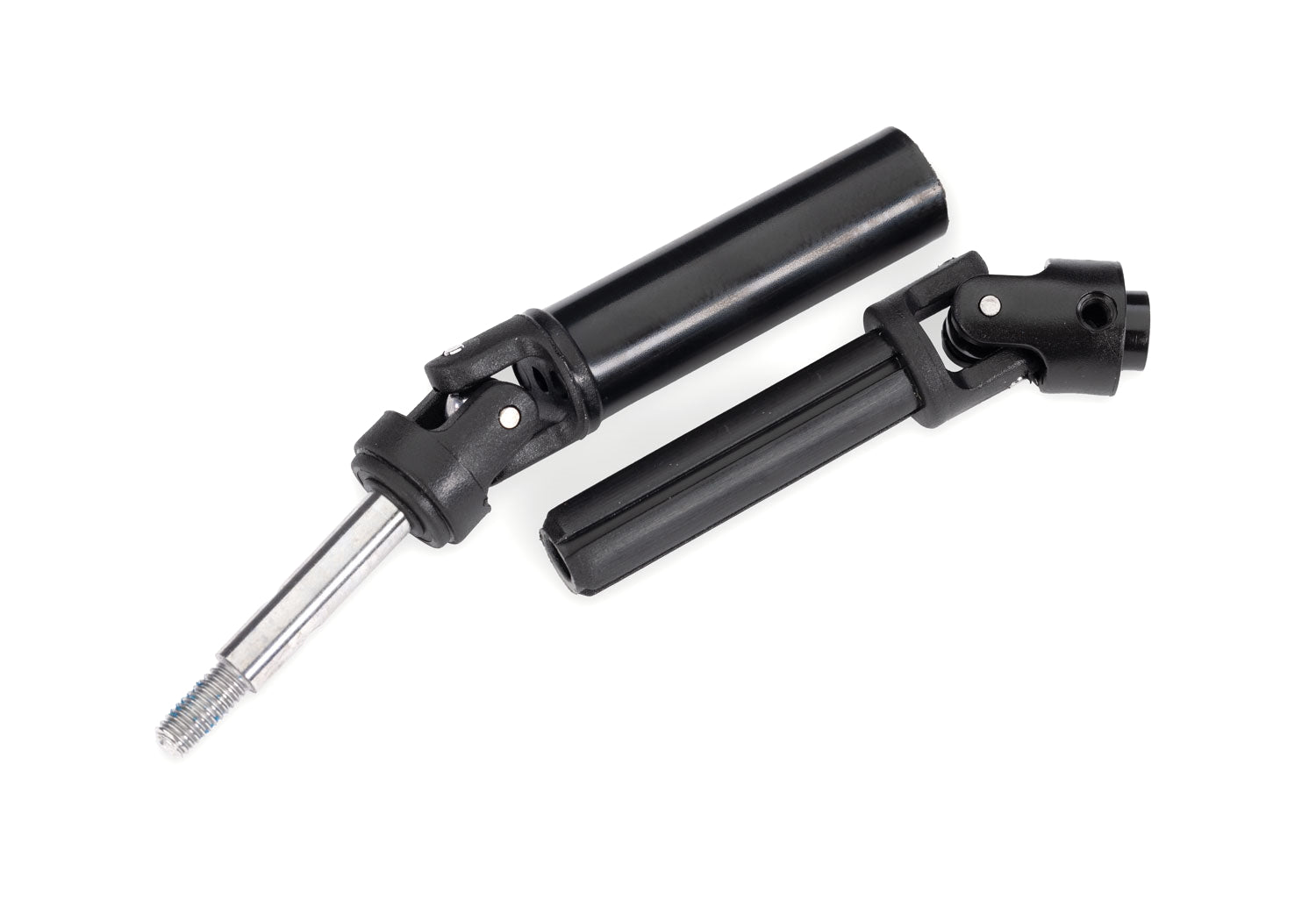

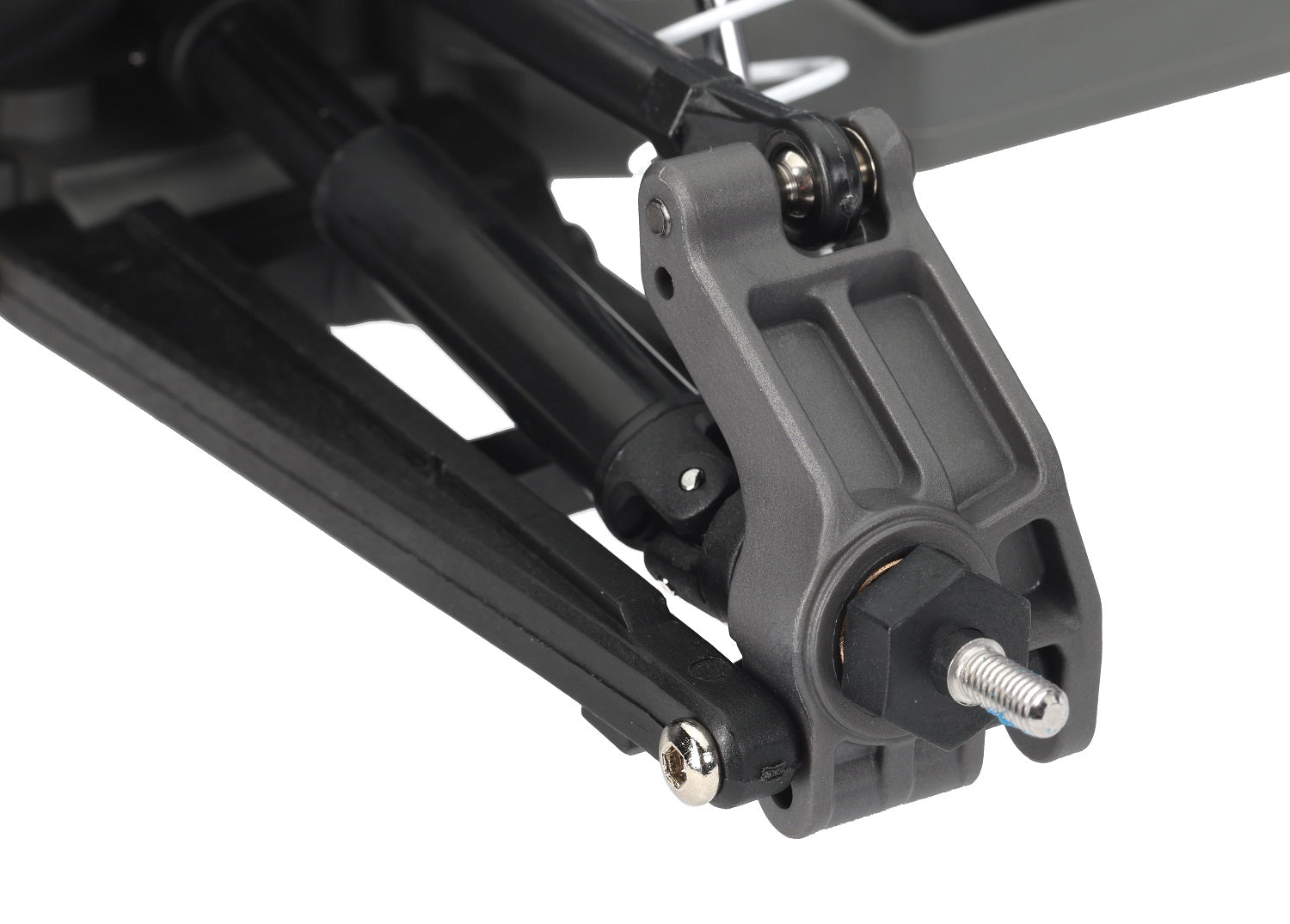

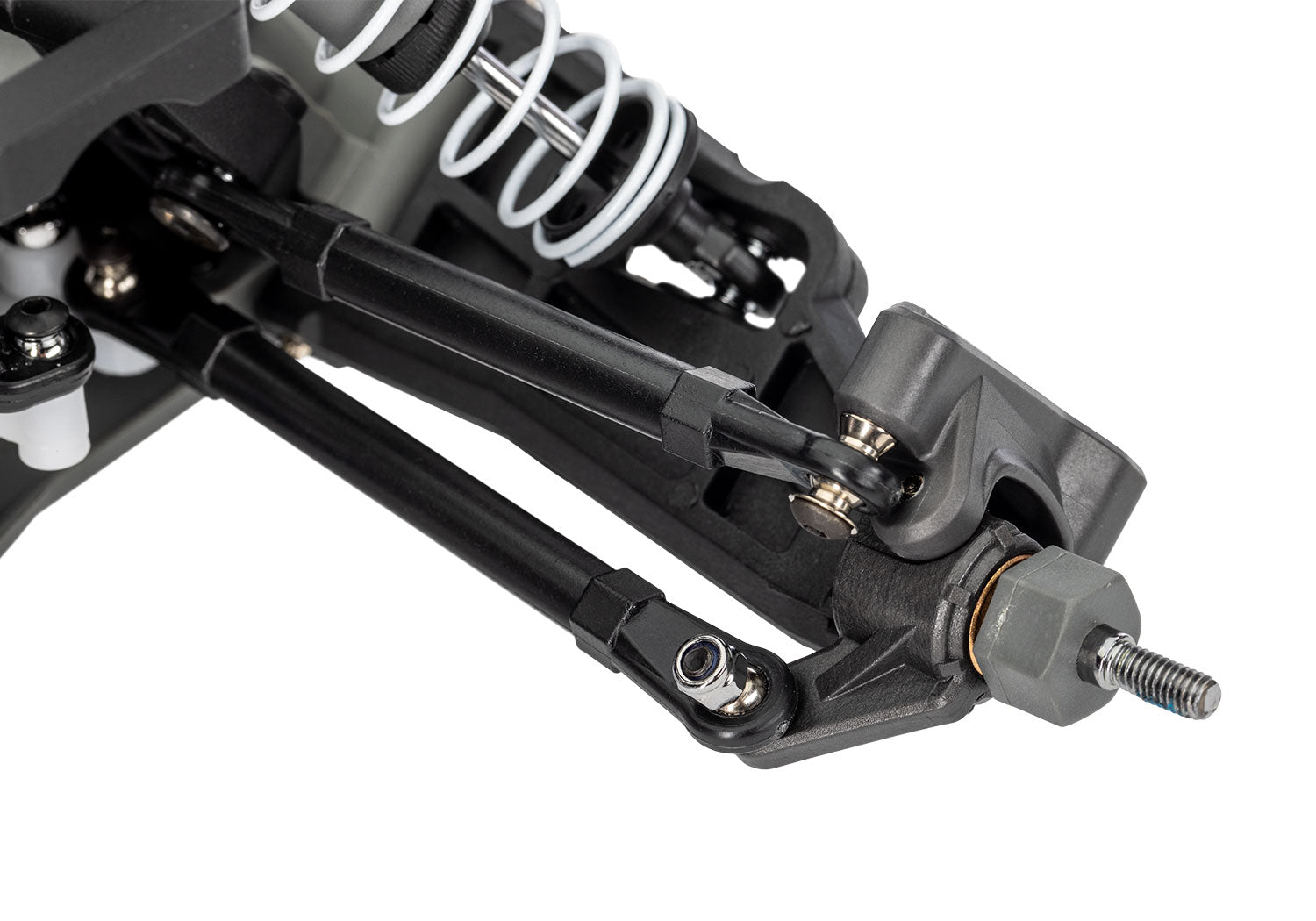

- Factory-Installed Extreme HD Suspension Components
- TQ™ 2.4 GHz Radio System
- Brushless-Ready Metal Gear Magnum 272™ Transmission
- Large 2.8″ RXT™ black & chrome wheels with 2.8″ Alias® tires

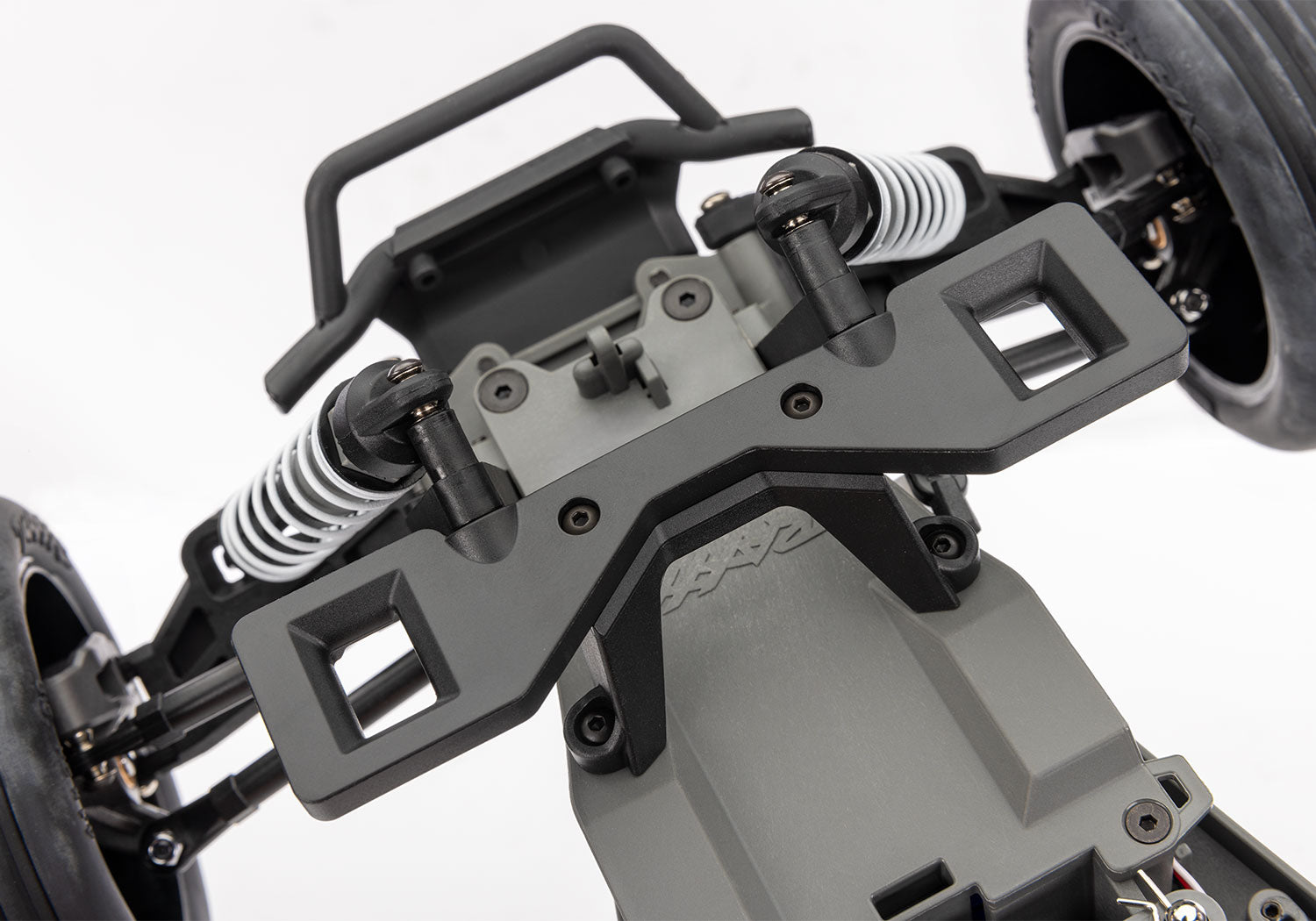

- Clipless. Pre-painted Body

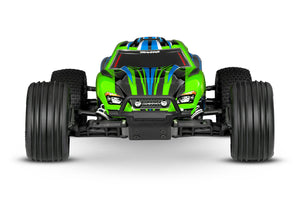

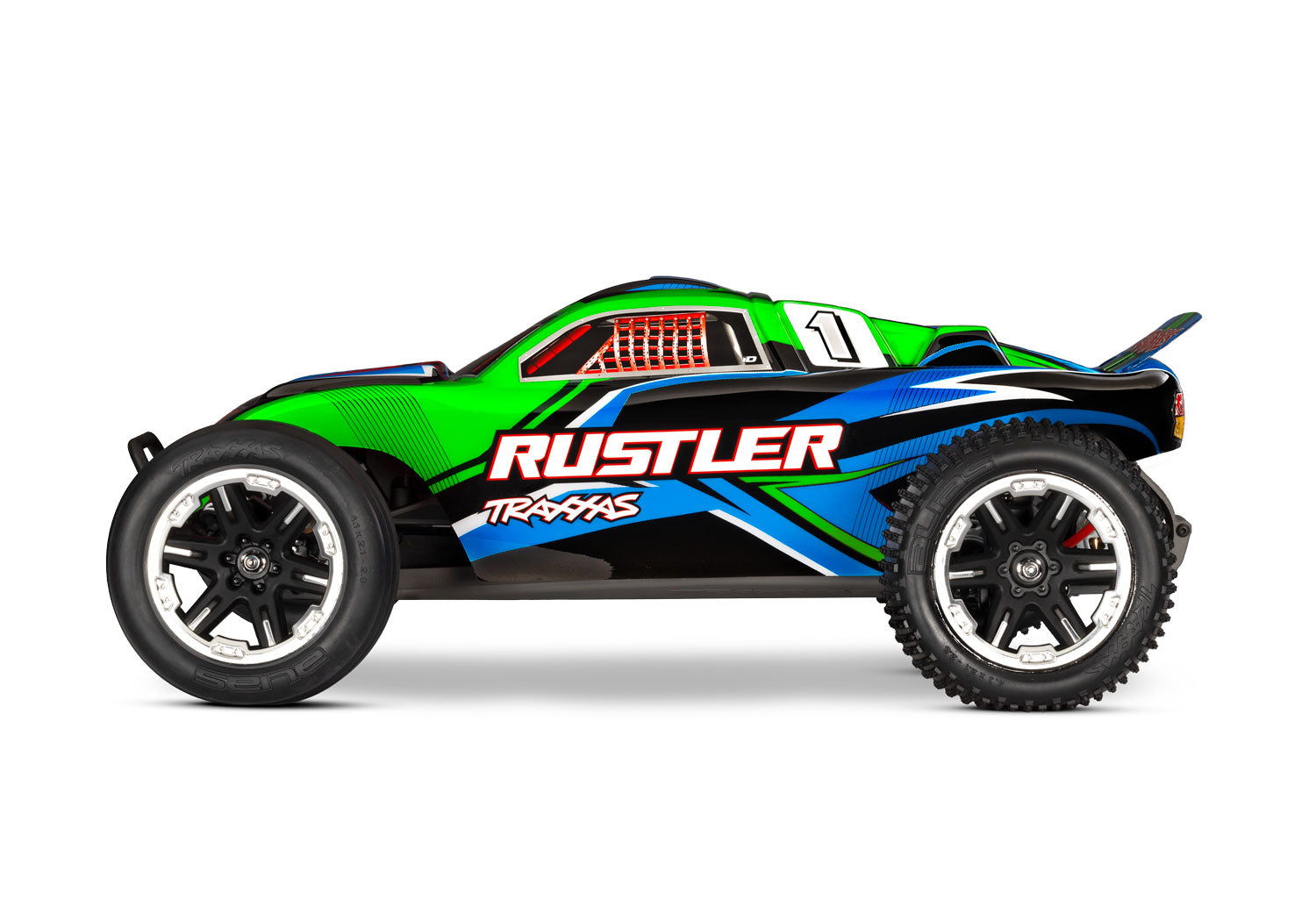

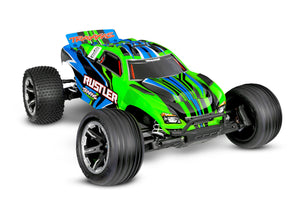

Traxxas Rustler® sits low and wide for maximum high-speed stability, with fast reflexes and an agile feel not found on other trucks. New factory-installed heavy duty suspension components allow Rustler to push the performance envelope to the extreme with next-level durability. Rustler delivers power-sliding, full-throttle fun and a blistering 35+ mph top speed in a Ready-to-Race® package backed by Traxxas’ legendary innovation.
|
| Length: |
|
18.1 inches (445 mm) |
| Front Track: |
|
12.25 inches (311 mm) |
| Rear Track: |
|
12.25 inches (311 mm) |
| Weight: |
|
59.6 ounces (1.69 kg) |
| Height (overall): |
|
7 inches (178 mm) |
| Wheelbase: |
|
11.4 inches (289 mm) |
| Front Shock Length: |
|
Long |
| Rear Shock Length: |
|
XX-long |
| Front Tires (pre-glued): |
|
Alias® ribbed 2.8″ |
| Rear Tires (pre-glued): |
|
Alias® Step-Pin 2.8″ |
| Front Wheels: |
|
2.8″ Black and chrome 6-spoke |
| Rear Wheels: |
|
2.8″ Black and chrome 6-spoke |
| Electronic Speed Control: |
|
XL-5™ electronic speed control |
| Motor (electric): |
|
Titan® 12-turn 550 |
| Steering Servo: |
|
2056 high torque waterproof |
| Transmitter: |
|
TQ™ 2.4 GHz radio |
| Receiver: |
|
6519 TQ 3-channel |
| Gear Ratio (internal): |
|
2.72 (final drive: 10.17) |
| Differential Type: |
|
Planetary |
| Gear Pitch: |
|
48 pitch |
| Transmission: |
|
Magnum 272™
|

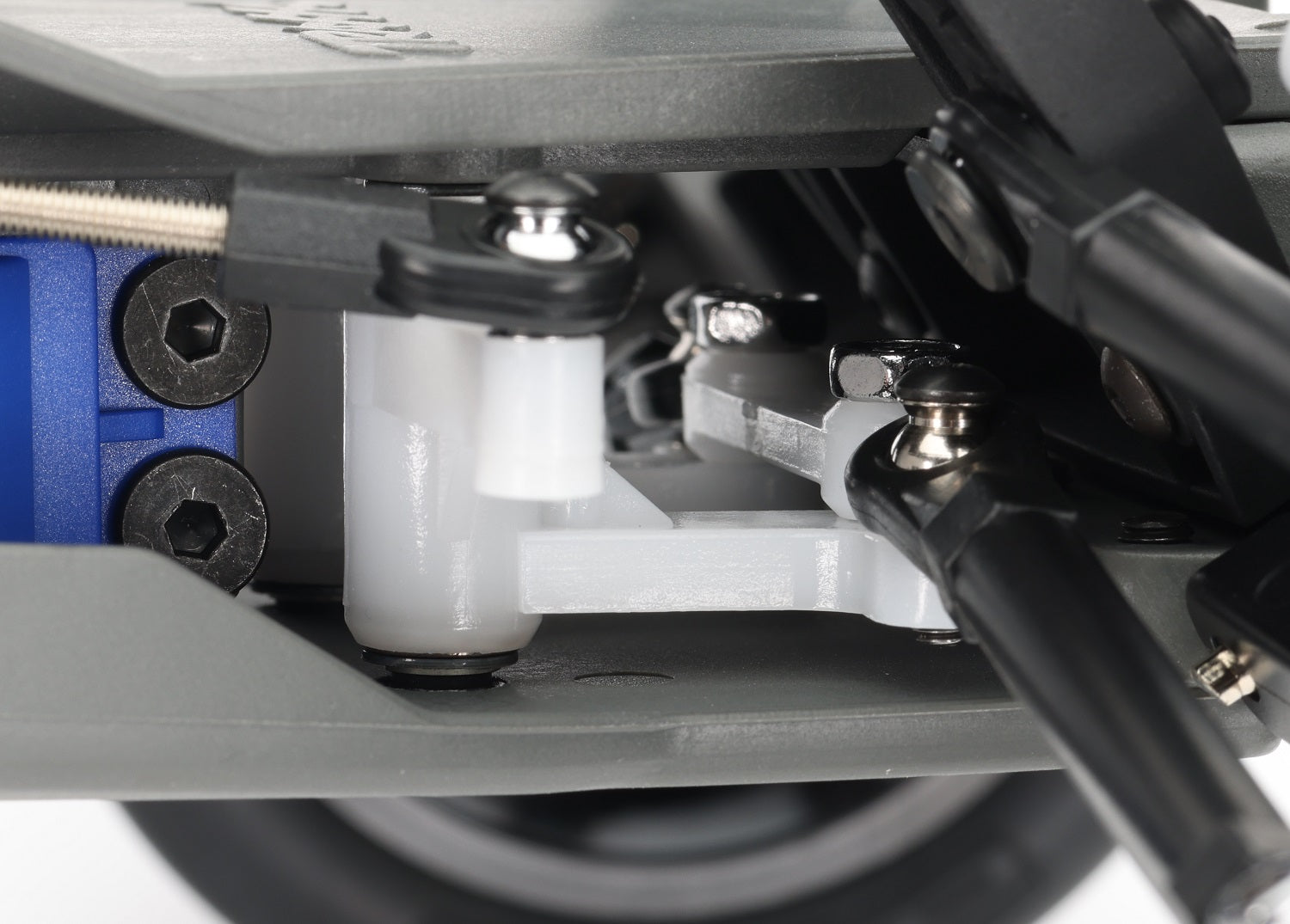

| Steering: |
|
Bellcrank |

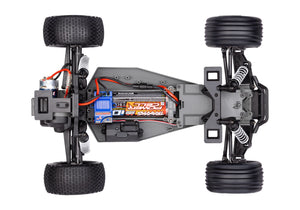

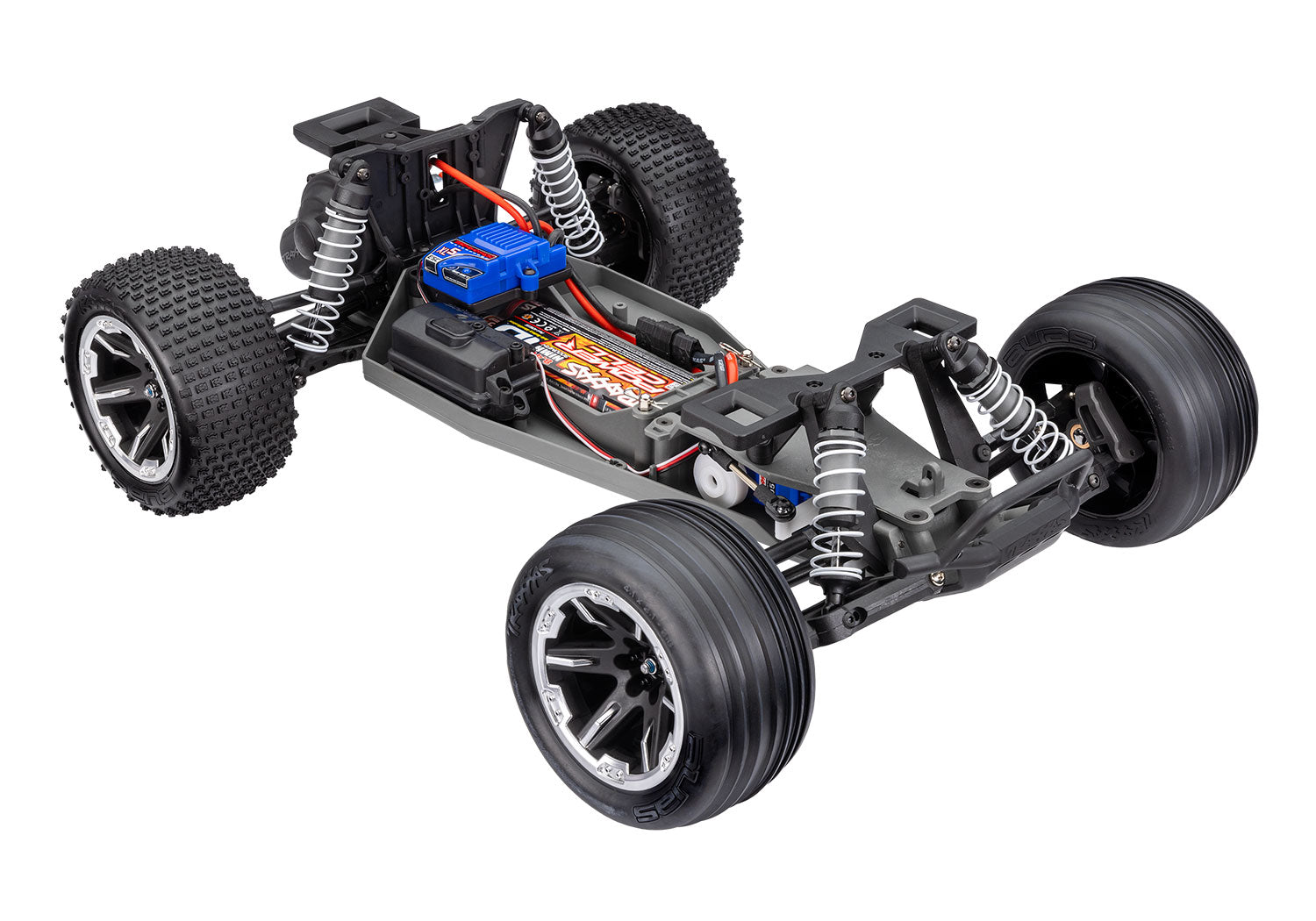

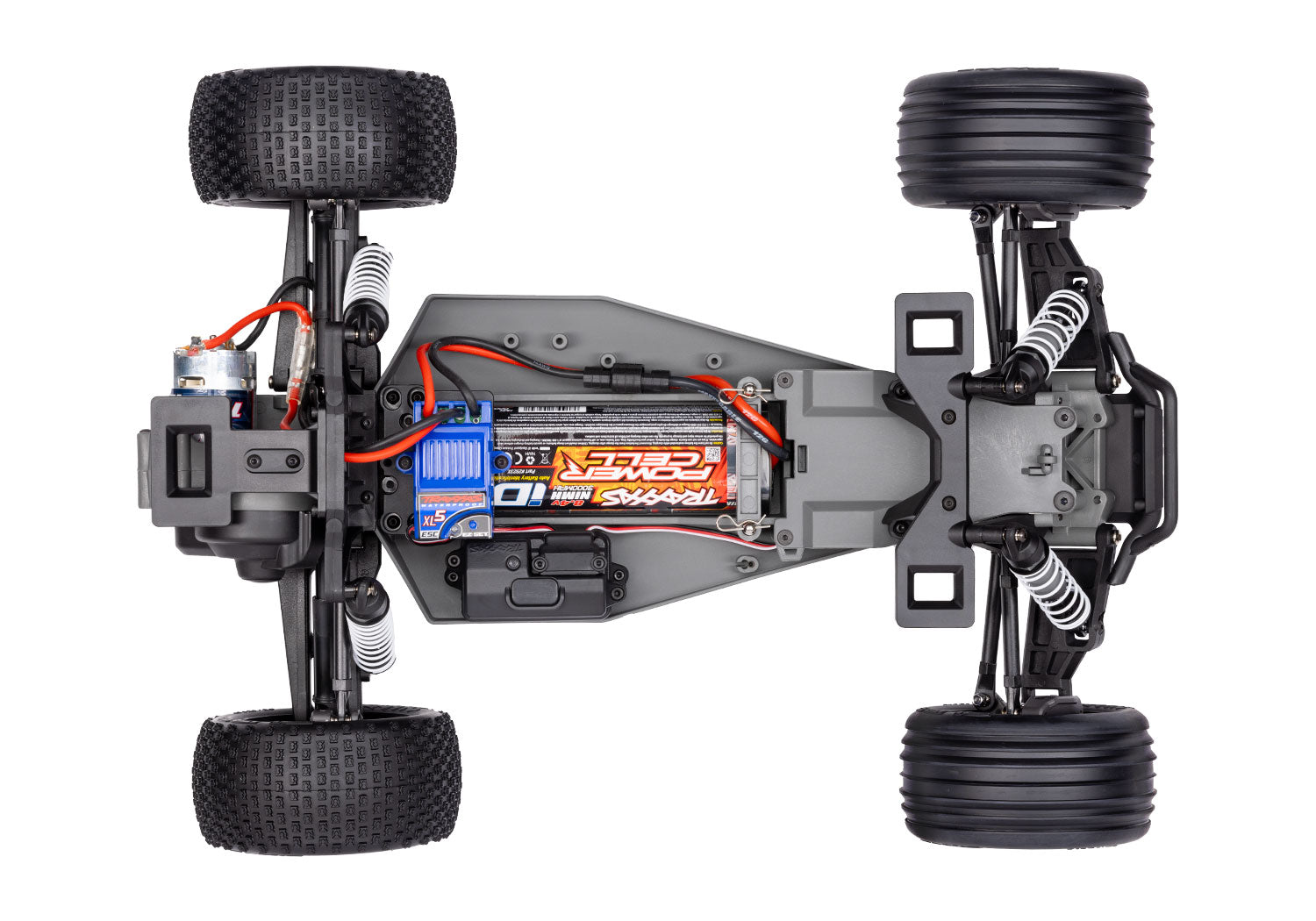

| Chassis Type: |
|
Modified tub |
| Chassis Material: |
|
Composite Nylon |
| Top-Speed: |
|
35+ mph** |
| Skill Level: |
|
1 |

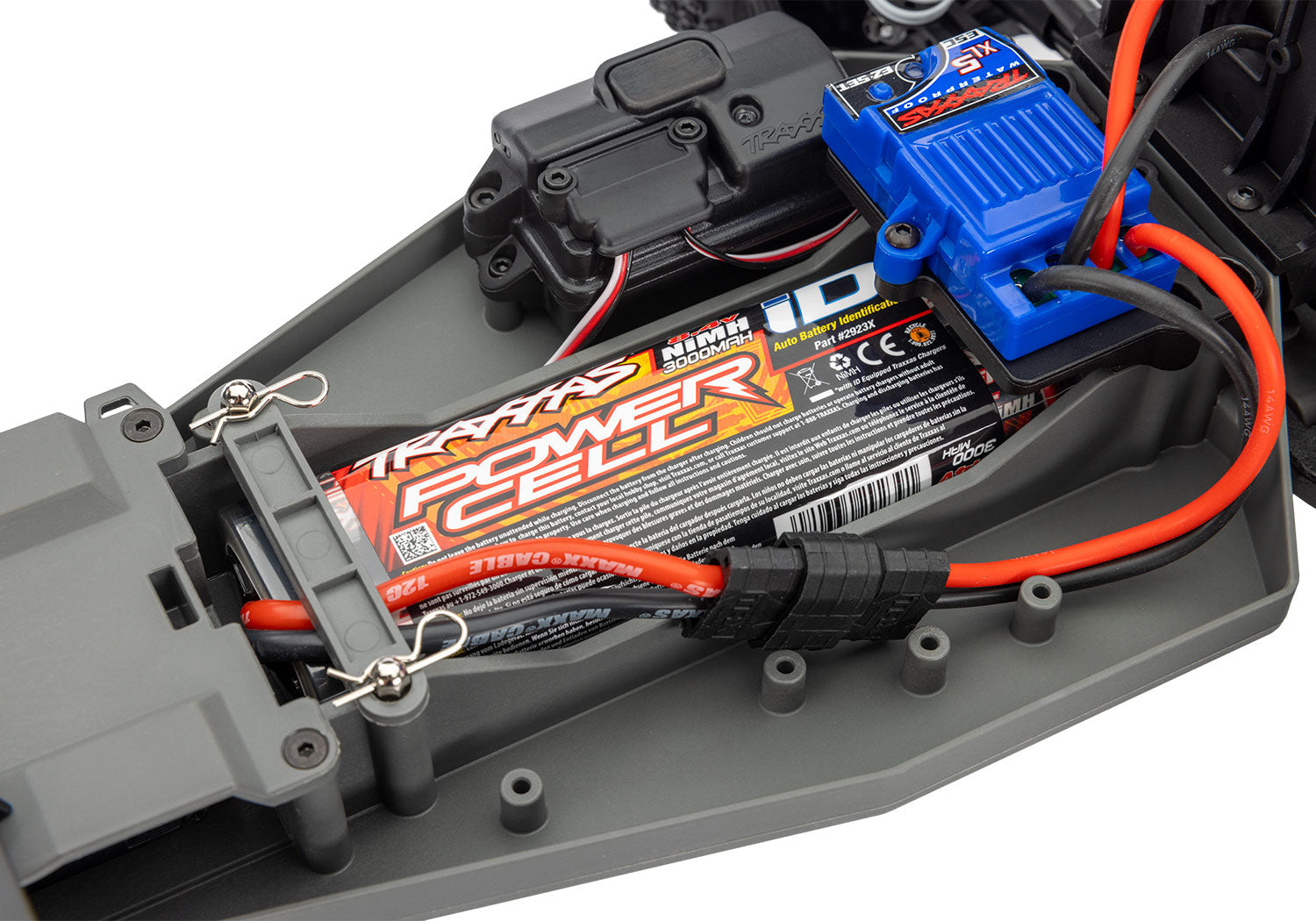

| *Battery Tray Dimensions: |
|
166 mm x 48 mm x 28 mm |
| Included Charger: |
|
Traxxas 4-amp USB-C fast charger |
| Included Batteries: |
|
Traxxas Power Cell 3000 mAh, 8.4 V, NiMH battery with iD®
|
| Required Batteries: |
|
4 "AA" (transmitter) |
| *Battery expansion kit available (3725X). |
| **With 7-cell battery and included optional 28-tooth pinion gear. |
|
|
| Input voltage: |
|
7.2 - 8.4 V (NiMH), 7.4 V (LiPo) |
| Case Size: |
|
31 mm x 55 mm x 15.5 mm |
| Weight: |
|
2.44 ounces |
| Motor Limit: |
|
15-turns** (540 size)
12-turns** (550 Size) |
| On Resistance Forward: |
|
0.007 ohms |
| On Resistance Reverse: |
|
0.014 ohms |
| BEC Voltage: |
|
6.0 volts |
| BEC Current: |
|
1 amp |
| Power Wire: |
|
14 gauge / 5 inches |
| Input Harness Wire: |
|
26 gauge / 9 inches |
| PWM Frequency: |
|
1600 Hz |
| Low Voltage Detection (LVD): |
|
2-stage indicators, switchable (on or off) |
| Thermal Protection: |
|
Thermal shutdown |
| Profile selection: |
|
Sport Mode:
100% FWD, 100% brakes, 100% REV
Race Mode:
100% FWD, 100% brakes, no REV
Training Mode:*
50% FWD, 100% brakes, 50% REV |
| Single-button setup: |
|
Traxxas EZ-Set®
|
|
|
*Patented **Properly Geared |
|
MODEL 37254-8: Fully assembled, waterproof, Ready-To-Race®, with TQ™ 2.4 GHz radio system,
XL-5™ electronic speed control, 8.4 volt NiMH 3000 mAh Power Cell™ battery, 4-amp USB-C fast charger, and clipless painted body
